SUKE VAPE VENDING

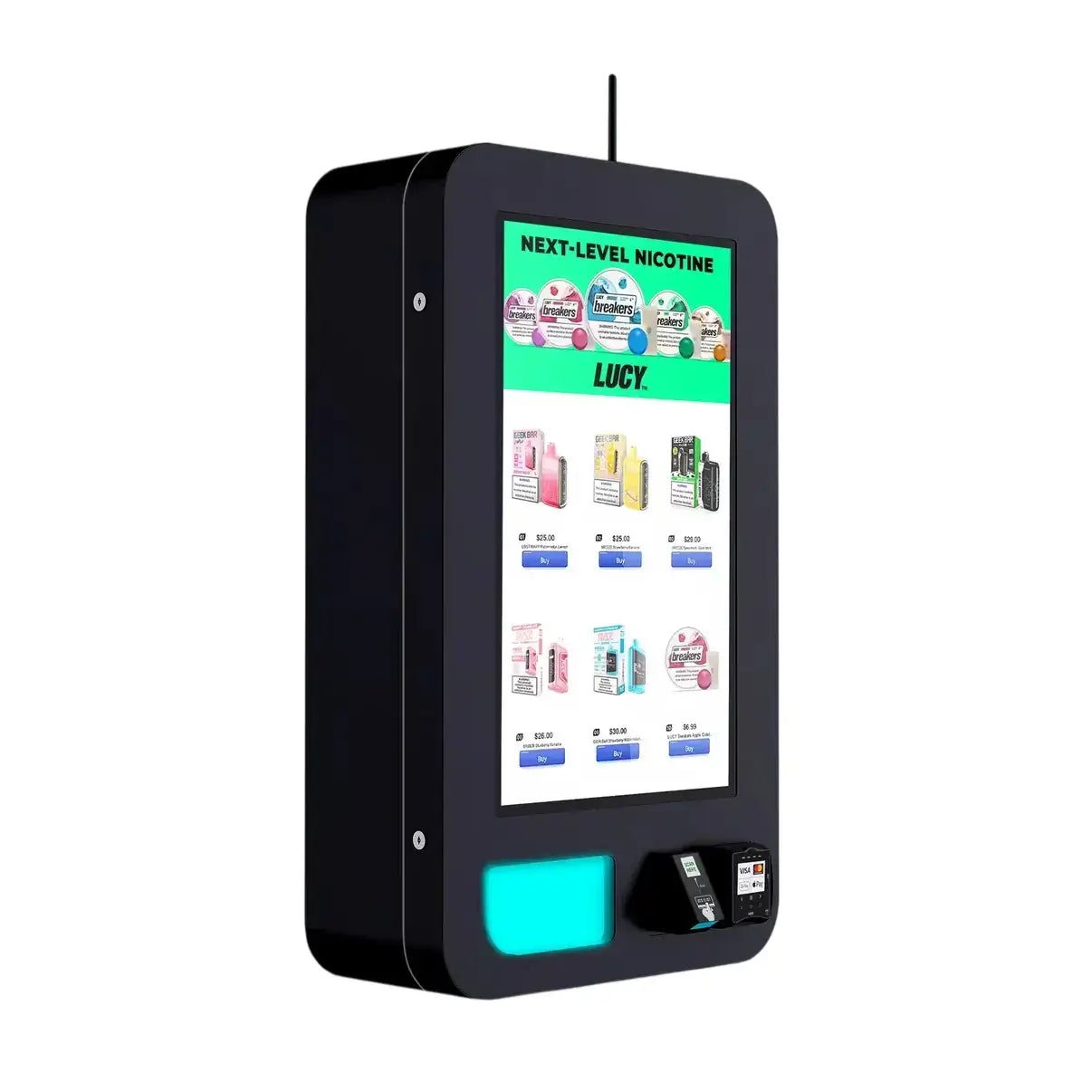

Slim Wall Wall-Mounted Vape Vending Machine

COMMERCIAL SPECIFICATIONS
With ID Scanner Instant age verification
Cloud IoT Portal Live stock & sales tracking
1 Year Warranty Full commercial support
1.8mm Steel Body Anti-theft double locking
HD Touch Display Interactive multimedia UX
Multi-Coil Pitch 22mm-55mm goods fit
PAYMENT OPTIONS
Card Reader
Card
Cash Acceptor
Cash
QR Pay
QR Code
Coin Acceptor
Coin
$4,999.00
COMPACT WALL-MOUNTED VAPE VENDING SOLUTION

Slim Wall: Wall-Mounted Vape Vending Machine

The Slim Wall by SUKE Vape Vending is a compact wall-mounted smart vending machine designed for vape shops, tobacconists, bars, clubs, nightlife venues, hospitality spaces, corridors, and space-limited commercial locations. With a 32-inch touchscreen, slim 10.2-inch depth, 10 configurable aisles, slide-out trays, pre-installed wall bracket, Nayax VPOS Touch payment compatibility, optional ID scanner support, and cloud-based vending management, the Slim Wall offers a practical and popular wall-mounted vending solution for automated vape and compact retail sales.

32" Touchscreen 10 Aisles Up to 100 Units Slim 10.2" Depth ID Scanner Ready
HIGH PERFORMANCE AUTOMATED RETAILING

Popular Wall-Mounted Vape Vending for Compact Commercial Spaces

The Slim Wall is designed for operators who want a reliable vape vending machine without using valuable floor space. Its wall-mounted structure and slim 10.2-inch depth make it suitable for narrow corridors, retail walls, venue entrances, bar areas, lounges, tobacconists, and other compact commercial environments where a freestanding machine may not be practical.

Built with slide-out trays and a pre-installed wall bracket, the Slim Wall helps simplify installation, restocking, and daily operation. It combines cashless payment, touchscreen product display, configurable coil capacity, optional age verification, and remote machine management in one space-saving automated retail system.

Slim Wall-Mounted Design

With a compact 10.2-inch depth, the Slim Wall is ideal for locations where floor space is limited but automated retail access is still needed.

32" Commercial Touchscreen

Large touchscreen interface supports product browsing, digital pricing, branded product display, promotional content, and customer-facing purchase workflows.

10 Configurable Aisles

Supports 10 vending aisles for vape products, pouch products, accessories, compact packaged goods, and selected high-value retail items.

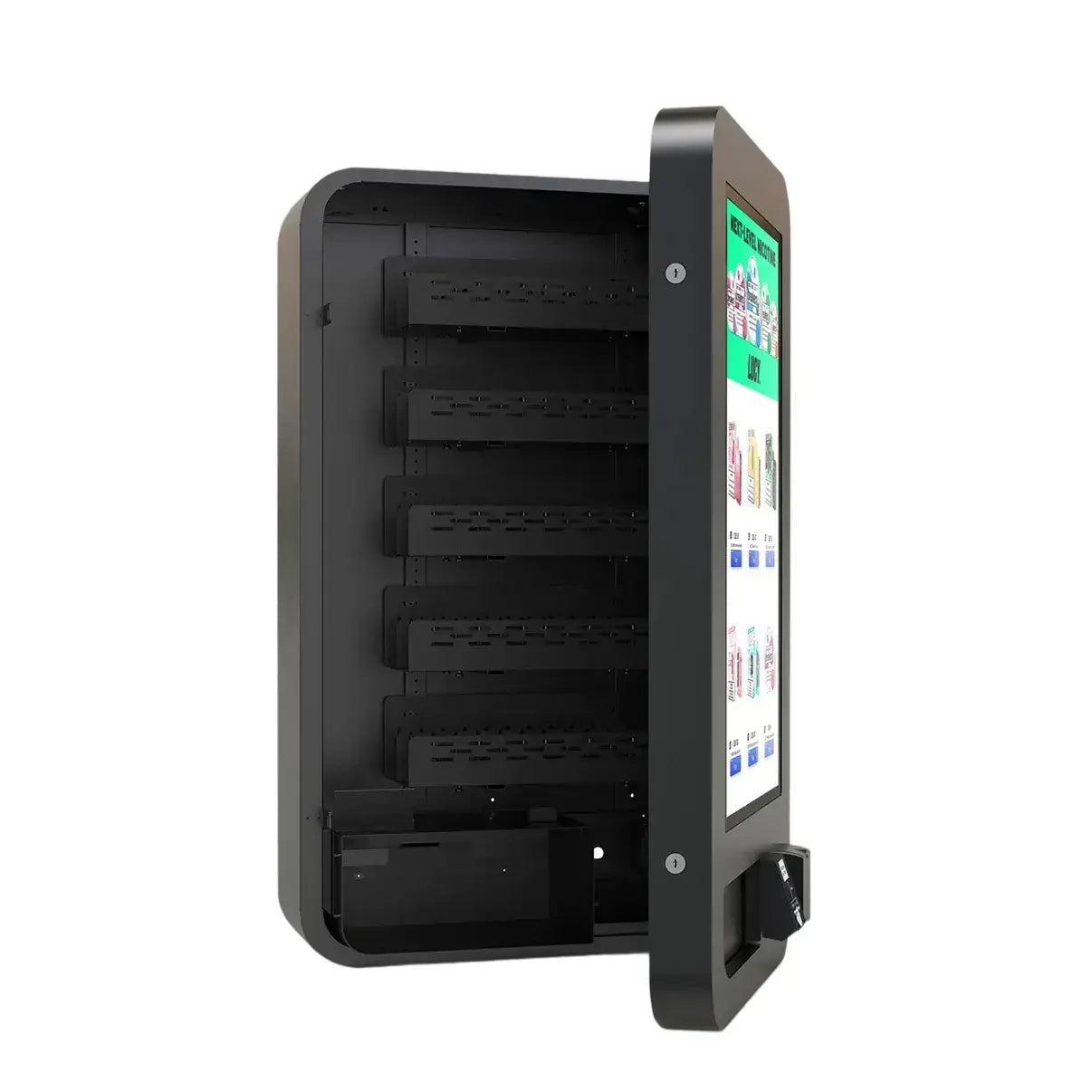

Slide-Out Trays

Slide-out trays make restocking and product layout adjustment faster and more convenient for operators and venue staff.

Pre-Installed Wall Bracket

Comes with a pre-installed wall bracket to support faster installation planning and easier wall-mounted deployment in suitable commercial locations.

Optional ID Scanner

Modular plate supports optional ID scanner add-on for age-restricted product vending where required by local rules, licensing requirements, or venue policies.

TECHNICAL SPECIFICATIONS

Slim Wall Machine Configuration

The Slim Wall is engineered for compact wall-mounted vending applications. Its 32-inch touchscreen, 10-aisle layout, Nayax VPOS Touch payment model, WiFi / 2G / 4G connectivity, Android / iOS compatible management environment, and optional ID scanner add-on make it suitable for professional automated retail deployment.

Specification Details
Machine Type Slim wall-mounted vape vending machine

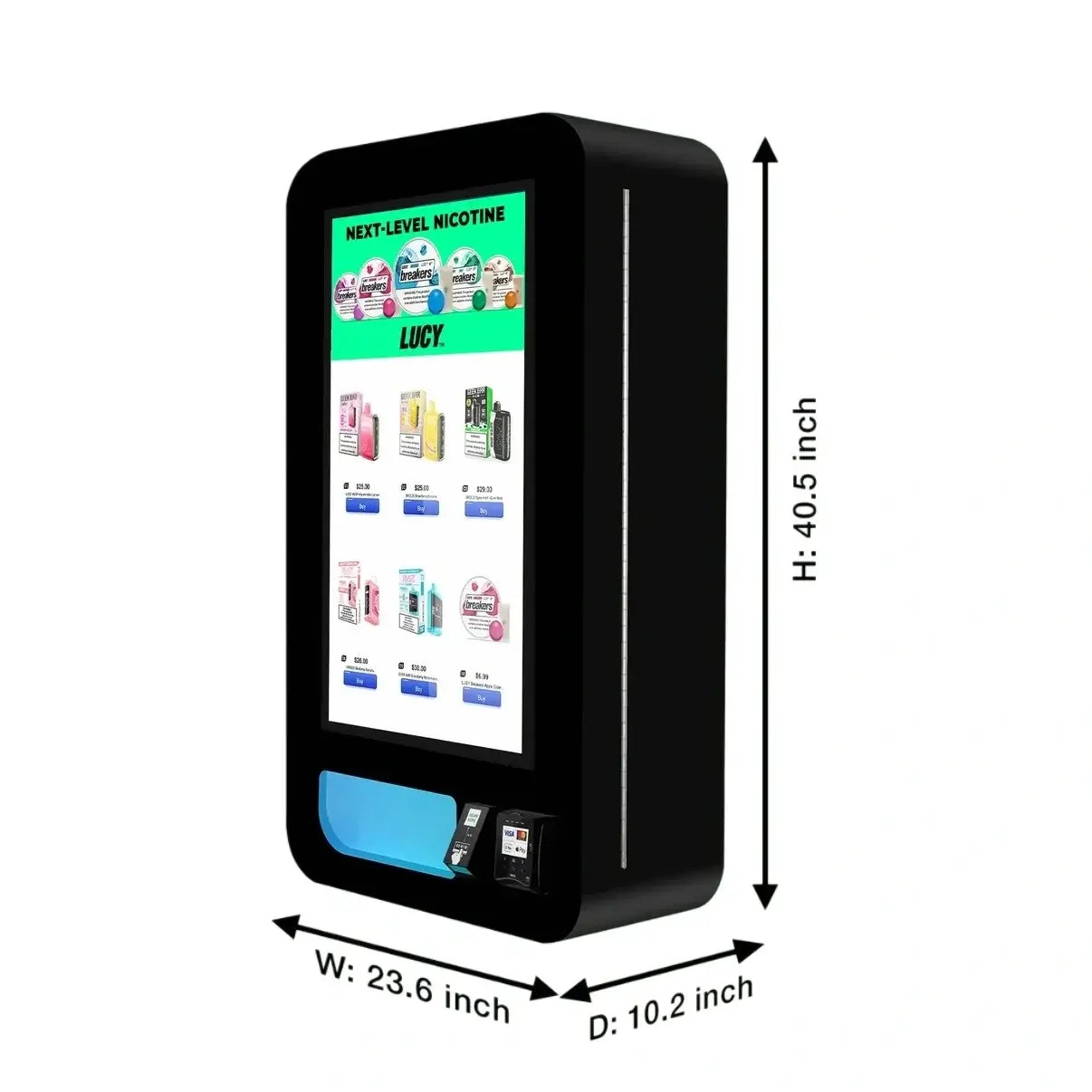

Dimensions 23.6" W × 40.5" H × 10.2" D
Product Exit 4.33"
Weight 121 lbs
Material 1.8mm steel casing with powder-coated finish
Locking Mechanism Dual barrel lock with standard keys
Display 32-inch commercial touchscreen
Number of Aisles 10 configurable vending aisles
Capacity Up to 70 units on standard 50mm coils or up to 100 units on 35mm coils
Payment Model Nayax VPOS Touch
Network WiFi / 2G / 4G with Ethernet port and WiFi receiver
Operating System Android / iOS compatible management environment
Software Stack SUKE cloud-based vending management system
Modular Plate Yes, ID scanner optional add-on
Wall Installation Pre-installed wall bracket for faster installation and service access
Tray Access Slide-out trays for fast restocking and product configuration
Power Consumption 50W
Voltage Supply 110VAC 60Hz standard configuration; Australian 220–240V / 50Hz configuration available upon request
Current Draw 0.5 to 0.6 A under 110V configuration
Operating Temperature 41°F to 104°F
Warranty 1-year commercial support available according to order terms
COIL & SKU CONFIGURATION

10-Aisle Layout for Vape Products, Pouches, and Compact Retail Items

The Slim Wall supports flexible coil configuration based on product size, package thickness, and desired capacity. Operators can use standard 50mm coils for common vape and boxed products, or 35mm coils for slimmer products where higher item capacity is required.

Coil Configuration Target Merchandise Profile Estimated Capacity
50mm Coils Disposable vapes, boxed vape products, pouch products, compact accessories, and standard packaged goods Up to 70 total units across 10 aisles
35mm Coils Slimmer packaged items, compact pouch products, small accessories, and high-density retail SKUs Up to 100 total units depending on product dimensions
Mixed Coil Layout Combination of vape products, pouches, accessories, and compact retail products Final capacity depends on product mix and aisle configuration
PAYMENT CONFIGURATION

Nayax VPOS Touch Payment for Compact Wall-Mounted Vending

The Slim Wall supports Nayax VPOS Touch for cashless vending transactions. Depending on local merchant approval and payment provider configuration, operators can support card payment, tap-to-pay, mobile wallets, vending payment reporting, and remote sales review.

Nayax VPOS Touch Payment Model Supports cashless vending transactions, tap-to-pay, card payment, mobile wallet compatibility, and vending payment reporting.
WiFi / 2G / 4G Connectivity Multiple network options support payment communication, transaction reporting, remote machine status, and vending telemetry.
Cloud-Based Sales Records Operators can review sales activity, transaction history, inventory movement, and product performance through compatible vending software.
Project-Based Payment Setup Payment and network configuration can be selected according to market availability, merchant approval, and deployment requirements.
APPLICATION SCENARIOS

Designed for Vape Shops, Corridors, Bars, Clubs, and Compact Retail Spaces

The Slim Wall is suitable for businesses that need a popular, compact, and space-saving vape vending solution. Its wall-mounted design helps operators create automated retail access in locations where freestanding machines may take too much space.

Vape Shops & Tobacconists Can be used as an automated retail extension for vape products, pouch products, accessories, and compact boxed goods.
Bars, Clubs & Nightlife Venues Suitable for high-traffic nightlife locations where compact wall-mounted product access is preferred.
Corridors & Space-Limited Areas The slim 10.2-inch depth helps operators place the machine in narrow areas without occupying valuable floor space.
Hospitality & Entertainment Spaces Suitable for lounges, hotels, entertainment venues, event spaces, and compact indoor commercial environments.
AGE VERIFICATION & COMPLIANCE

Optional ID Scanner Add-On for Age-Restricted Product Vending

The Slim Wall includes a modular plate design that can support an optional ID scanner add-on. This allows operators to add an age-verification workflow for vape, pouch, or other age-restricted products where local regulations, licensing rules, or venue policies require additional verification.

Compliance requirements vary by country, state, territory, city, product category, venue type, and sales model. Operators are responsible for confirming that the selected product category, vending configuration, payment setup, age-verification workflow, and installation location comply with all applicable regulations before deployment.

AUSTRALIA DEPLOYMENT SUPPORT

Compact Wall-Mounted Vape Vending Support for Australian Commercial Locations

SUKE Vape Vending can support Australian operators with machine selection, product fit checks, wall-mounting planning, payment configuration, voltage planning, shipping preparation, remote management setup, and after-sales technical assistance. The Slim Wall is suitable for businesses that want a compact wall-mounted vape vending solution in Sydney, Melbourne, Brisbane, and other commercial locations across Australia.

Before order placement, operators should confirm voltage configuration, plug standard, wall structure, installation height, payment terminal approval, network coverage, product dimensions, compliance requirements, and whether optional ID scanner hardware is required.

Sydney Warehouse Support 5 Ladbroke St, Milperra NSW 2214, Australia
Melbourne Warehouse Support 11 Webber Pde, Keilor East, VIC, Australia
Brisbane Warehouse Support B1, 142-172 Sherbrooke Road, Willawong QLD 4110, Australia
WHY CHOOSE SLIM WALL?

A Popular Wall-Mounted Vape Vending Machine for Compact Automated Retail

The Slim Wall is designed for operators who need a compact, reliable, and easy-to-install vape vending machine. Its 32-inch touchscreen, slim wall-mounted cabinet, 10-aisle vending layout, Nayax VPOS Touch payment, slide-out trays, pre-installed wall bracket, and optional ID scanner support make it a strong choice for vape retail, nightlife vending, and compact commercial environments.

With SUKE Vape Vending, operators can receive support for product layout planning, coil selection, payment integration, optional age verification, branding options, remote monitoring, spare parts, shipping planning, and after-sales technical assistance.

FREQUENTLY ASKED QUESTIONS

Slim Wall Installation & Operation FAQ

How many products can the Slim Wall hold?

The Slim Wall can hold up to 70 units on standard 50mm coils or up to 100 units on 35mm coils, depending on product size, package shape, coil configuration, and final vending layout.

Does the Slim Wall require floor space?

No. The Slim Wall is designed as a wall-mounted vending machine, making it suitable for compact commercial environments where floor space is limited.

Is the Slim Wall easy to restock?

Yes. The machine is designed with slide-out trays, helping operators and venue staff restock products and adjust product layouts more efficiently.

Does it support Nayax VPOS Touch?

Yes. The Slim Wall supports Nayax VPOS Touch for cashless vending transactions, tap-to-pay, card payment, mobile wallet compatibility, and payment reporting where supported.

Can the machine support age verification?

Yes. The machine includes a modular plate design and can support an optional ID scanner add-on. Operators should confirm local laws and licensing requirements before selling age-restricted products.

Is Slim Wall suitable for Australian deployment?

Yes. Slim Wall can be prepared for Australian commercial deployment. Voltage, plug standard, wall-mounting conditions, payment compatibility, network coverage, product compliance, and optional ID scanner requirements should be confirmed before order placement.

SUKE SMART RETAIL ✦ 24/7 AUTONOMOUS OPERATION ZERO STAFF OVERHEAD ✦ INSTANT OPTICAL 18+ ID VERIFICATION AUSTRALIAN EFTPOS & NAYAX CASHLESS ✦ REAL-TIME CLOUD IOT INVENTORY VANDAL-PROOF INDUSTRIAL STEEL CASING ✦ AS/NZS RCM ELECTRICAL CERTIFIED
AUSTRALIAN COMPLIANCE & COMMERCIAL SUPPORT

Frequently Asked Questions for Australian Operators

Key answers for venue owners, retailers, hospitality operators, and commercial partners across New South Wales, Victoria, Queensland, Western Australia, South Australia, Tasmania, the ACT, and the Northern Territory.

Does the optical ID scanner support Australian 18+ age verification and privacy requirements?

Yes. The optical ID scanner is designed for Australian 18+ access-control scenarios. It can be configured to read common Australian age-verification documents, including state driver licences, Australian passports, and supported proof-of-age cards.

The age check is processed locally at the hardware level, helping operators verify eligibility without storing customer photos, names, addresses, or biometric identity records on the machine. This approach is designed to support privacy-conscious deployments in regulated commercial environments.

How does cashless payment integrate with Australian EFTPOS and major card networks?

Machines can be configured with commercial payment terminals such as Nayax VPOS Touch or Nayax Onyx, depending on your selected model and deployment requirements.

  • Supports Australian EFTPOS, Visa, Mastercard, and selected card networks.
  • Accepts contactless mobile wallets, including Apple Pay and Google Pay where supported.
  • Settlement can be arranged in AUD through compatible payment service providers.
  • Suitable for pubs, clubs, tobacconists, retail venues, hotels, entertainment locations, and unattended retail sites.
What cellular network and IoT options are available across Australia?

Each machine can be supplied with industrial IoT connectivity options, including wired Ethernet, Wi-Fi, and 4G/5G-ready modules depending on configuration.

This enables remote stock monitoring, sales visibility, payment connectivity, machine status alerts, and cloud-based telemetry for operators across Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, Hobart, Darwin, and selected regional commercial venues.

Are the machines suitable for Australian 240V commercial locations?

Yes. For Australian projects, machines can be supplied with 240V 50Hz power configuration and Australian standard plug options. Internal components such as power supplies, control boards, touchscreen systems, and payment modules can be specified based on commercial deployment requirements.

Final electrical configuration, compliance documentation, and installation requirements may vary depending on the model, order specification, and local site conditions.

What are the delivery options and customs processes for Australian orders?

We can assist with commercial freight options to major Australian locations, including Sydney, Melbourne, Brisbane, Perth, Adelaide, Gold Coast, Canberra, Hobart, and Darwin.

Depending on your order quantity, budget, and timeline, shipping can be arranged by sea freight or air freight. Delivery timing depends on production, machine configuration, customs clearance, port handling, local transport, and final site access.

For bulk or project-based deployments, we can help coordinate freight planning, export documentation, customs information, and door-to-door delivery options where available.

How are warranty, technical support, and spare parts handled for Australian operators?

Eligible machines are supported by commercial warranty coverage based on the agreed order terms. Our support team can assist with remote setup, troubleshooting, stock configuration, payment integration guidance, and operational training.

  • Common spare parts include spiral coils, drop sensors, 24V motors, control boards, payment harnesses, locks, power modules, and display components.
  • Replacement parts can be arranged according to machine model, diagnosed issue, and order configuration.
  • Remote support can help operators reduce downtime and maintain reliable unattended retail operation.

Match Your Flavors

FACTORY-DIRECT ENGINEERING & ODM SOLUTIONS

The Turnkey OEM Customization Process

From custom UI architecture and Australian ID compliance to precision steel fabrication. Engineered for hospitality venues, franchise operators, and retail networks across Australia.

01
Initial Scoping

Consultation & Technical Design

We define your project specifications: cabinet dimensions, coil spring pitch (22mm–55mm), and exterior powder-coated finish. Our engineering team delivers accurate 3D CAD blueprints and interactive UI mockups within 48 hours.

Deliverable: Full 3D Digital Renderings
02
Rapid Engineering

Prototype Development & Branding

We fabricate a functional working prototype with your bespoke vinyl graphics, custom launcher screens, and client-specified payment enclosures. Nayax VPOS Touch or Onyx cashless terminals are pre-mounted with test configurations.

Focus: Tactile Testing & Firmware Setup
03
Australian Regulatory Standards

Australian Compliance & Edge Testing

Every machine is rigorously validated for AS/NZS 3112 RCM electrical safety (240V 50Hz). We calibrate edge optical scanner firmware against Australian state driver licences (NSW, VIC, QLD, WA, SA), strictly satisfying the Australian Privacy Principles (APPs).

Standard: 100% RCM & APPs Edge Privacy
04
Mass Production & Logistics

Precision Manufacturing & DDP AU Freight

Automated laser cutting and CNC metal bending build cold-rolled steel chassis in batch runs. We manage fully insured DDP sea freight directly to Sydney (Port Botany), Melbourne, and Brisbane ports with customs clearance and 10% GST pre-cleared.

Logistics: Australian Customs & Duty Cleared
05
Deployment & Telemetry

AEST Support, Telemetry & Onboarding

Your fleet is pre-connected with Telstra and Optus Cat-M1 4G IoT eSIMs. We provide end-to-end cloud management training, daily EFTPOS bank payout setup, and dedicated technical support operating on Australian Eastern Standard Time (AEST).

Support: 1-Year Warranty & Express Spare Parts
