HIGH-CAPACITY WALL-MOUNTED VAPE VENDING SOLUTION

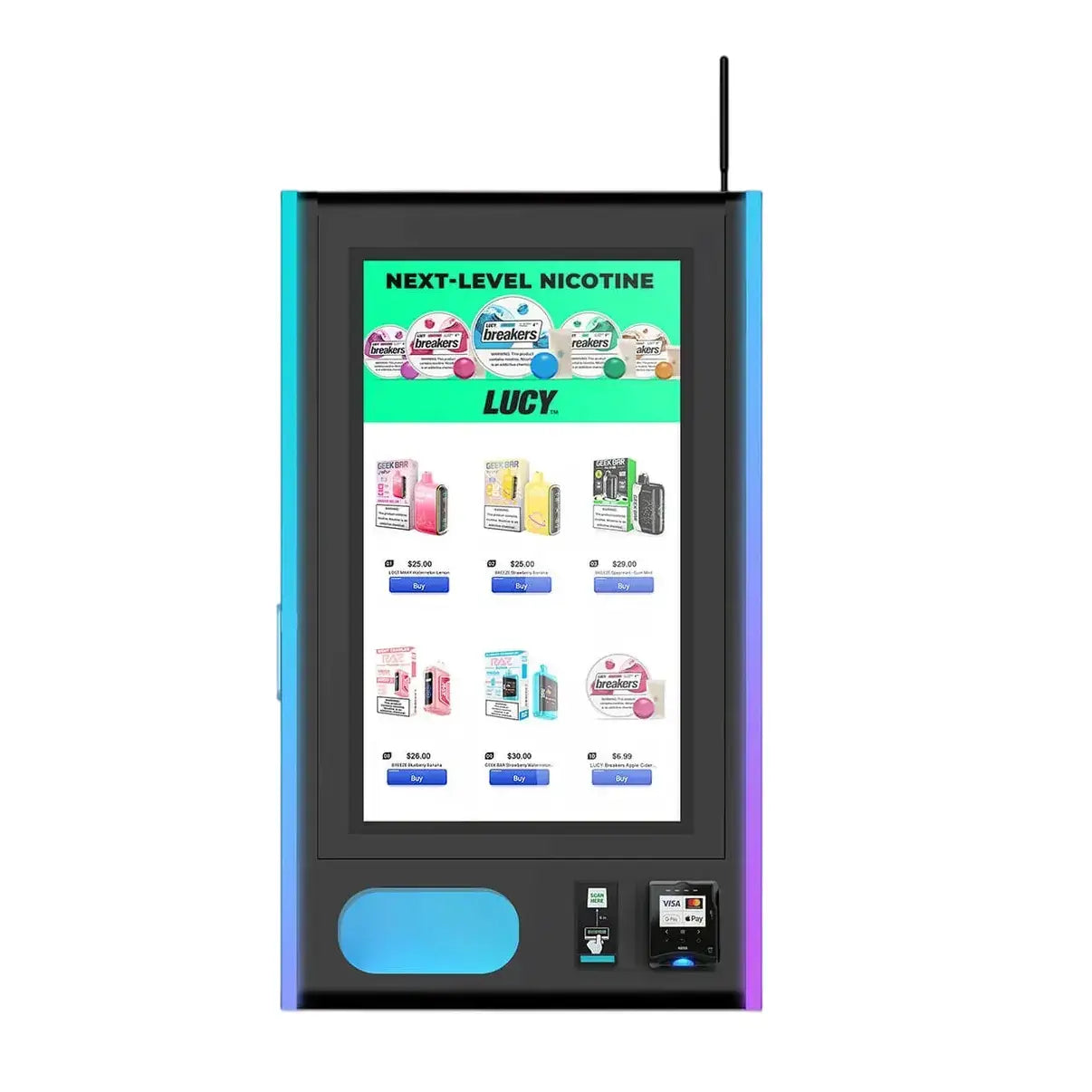

Mega Wall 2.0: Wall-Mounted Vape Vending Machine
The Mega Wall 2.0 by SUKE Vape Vending is a high-capacity wall-mounted
smart vending machine designed for vape retail, nightlife venues, bars, clubs, tobacconists, hospitality
locations, entertainment spaces, and high-ticket compact products. With a 32-inch touchscreen, 15 vending
aisles, up to 105 units on 50mm coils, LED product lighting, wider trays for boxed products, Nayax VPOS
Touch payment compatibility, keyless electronic access, and optional ID scanner support, the Mega Wall 2.0
gives operators a powerful wall-mounted vending solution without requiring a full freestanding footprint.
32" Touchscreen
15 Aisles
Up to 105 Units
Electronic Lock
ID Scanner Ready
HIGH PERFORMANCE AUTOMATED RETAILING
High-Capacity Wall-Mounted Vending for Vapes, Pouches, and High-Ticket Products
The Mega Wall 2.0 is built for operators who need more product capacity than a slim wall
vending machine while still keeping a compact wall-mounted installation format. Its 15-aisle layout provides
approximately 50% more SKU flexibility than smaller wall-mounted models, making it suitable for vape products,
Zyn-style pouch products, compact accessories, boxed items, and other high-value retail merchandise.
Designed for nightlife venues, vape shops, bars, clubs, convenience retail, tobacconists, hospitality spaces,
and high-footfall commercial locations, Mega Wall 2.0 combines a 32-inch touchscreen, LED product lighting,
electronic access control, Nayax cashless payment, cloud management, and optional age verification in one
professional automated retail system.
15-Aisle High-Capacity Layout
Supports 15 vending aisles and up to 105 units on 50mm coils, giving operators more SKU coverage and
greater product variety than smaller wall-mounted machines.
32" Commercial Touchscreen
Large touchscreen interface supports product browsing, digital pricing, branded product display,
promotional content, and a modern customer-facing purchase experience.
Keyless Electronic Access
Electronic lock can be opened by passcode or phone, helping operators simplify access control while
improving convenience for staff and service teams.
LED Product Lighting
Integrated LED product lighting improves product visibility and makes the machine more attractive in
nightlife, hospitality, and dimly lit commercial environments.

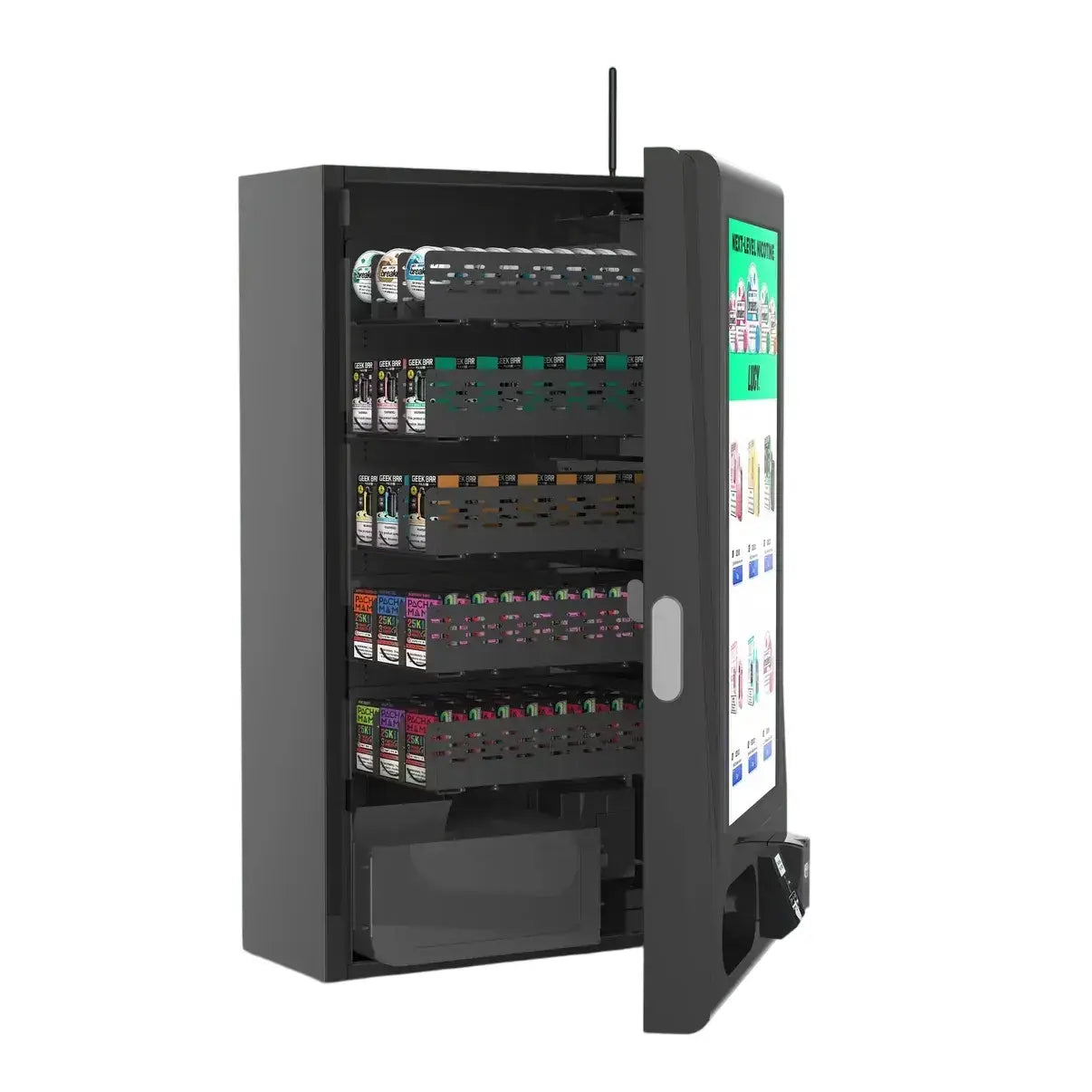

Wider Trays for Boxed Products
Designed with wider trays to better support boxed vape products, pouch products, accessories, and
high-ticket compact retail items.
Optional ID Scanner
Modular plate supports optional ID scanner add-on for age-restricted product vending where required by
local regulations, licensing rules, and venue policies.
TECHNICAL SPECIFICATIONS
Mega Wall 2.0 Machine Configuration
The Mega Wall 2.0 is engineered for high-capacity wall-mounted vending applications. Its 32-inch touchscreen,
15-aisle layout, 50mm coil capacity, Nayax VPOS Touch payment model, electronic access system, multi-network
connectivity, and optional ID scanner add-on make it suitable for professional vape vending and compact
retail deployment.
| Specification |
Details |
| Machine Type |
High-capacity wall-mounted vape vending machine |

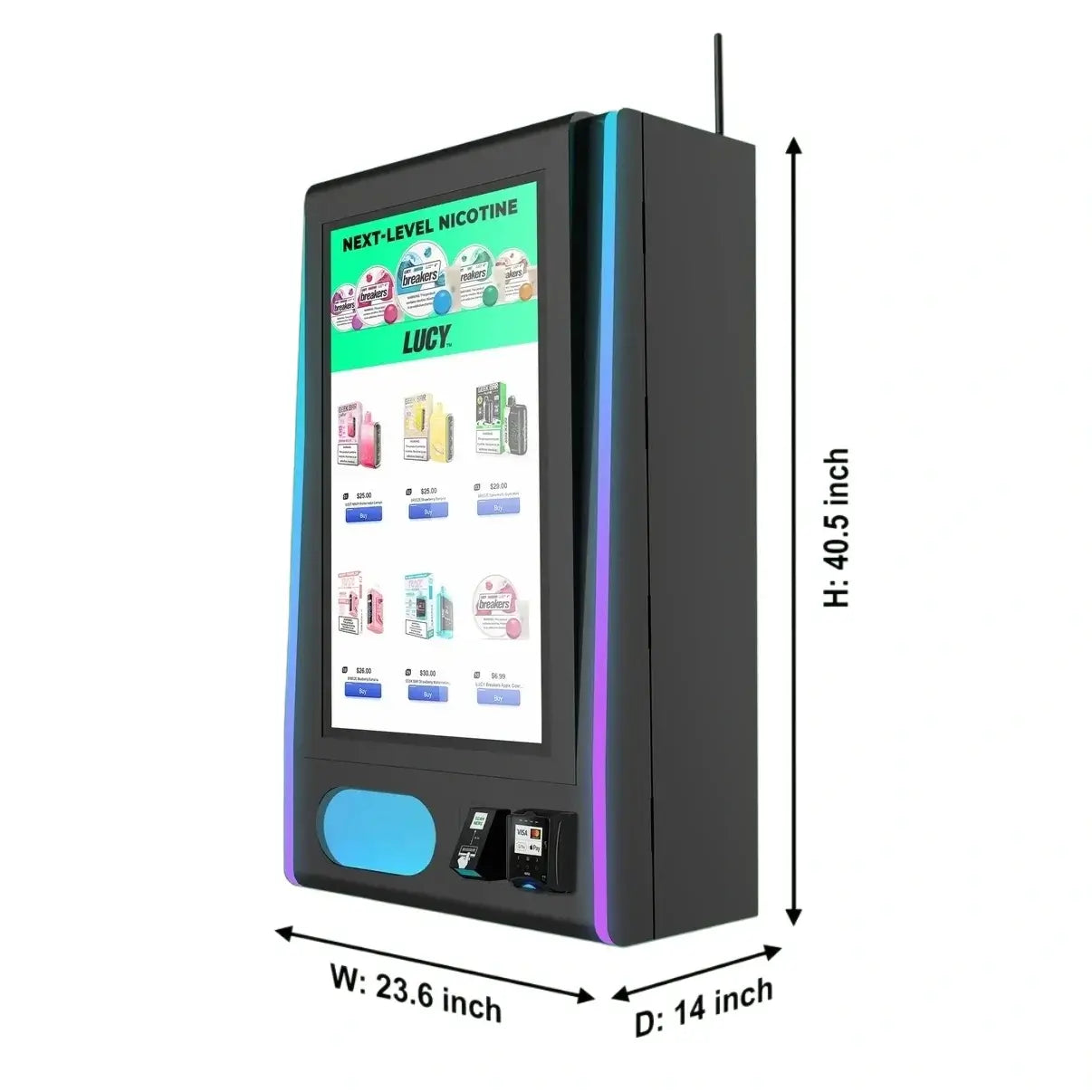

| Dimensions |
23.6" W × 40.5" H × 14" D |
| Product Exit |
4.33" |
| Weight |
149 lbs |
| Material |
1.8mm steel casing with powder-coated finish |
| Locking Mechanism |
Unique key plus electronic access |
| Electronic Access |
Keyless electronic lock opened by passcode or phone |
| Display |
32-inch commercial touchscreen |
| Number of Aisles |
15 configurable vending aisles |
| Capacity |
Up to 105 units on 50mm coils depending on product dimensions and final configuration |
| Payment Model |
Nayax VPOS Touch |
| Network |
WiFi / 2G / 4G with Ethernet port and WiFi receiver |
| Operating System |
Android / iOS compatible management environment |
| Software Stack |
SUKE cloud-based vending management system |
| Modular Plate |
Yes, ID scanner optional add-on |
| Product Lighting |
LED product lighting for improved product visibility |
| Power Consumption |
50W |
| Voltage Supply |
110VAC 60Hz standard configuration; Australian 220–240V / 50Hz configuration available upon request |
| Current Draw |
0.5 to 0.6 A under 110V configuration |
| Operating Temperature |
41°F to 104°F |
| Warranty |
1-year commercial support available according to order terms |
COIL & SKU CONFIGURATION
15-Aisle Layout with Wider Trays for Boxed Products
The Mega Wall 2.0 is designed for operators who need more SKU flexibility and stronger boxed-product
compatibility in a wall-mounted format. Its 15-aisle layout and 50mm coil configuration make it suitable
for disposable vapes, pouch products, compact accessories, boxed goods, and selected premium retail items.
| Configuration |
Target Merchandise Profile |
Estimated Capacity |
| 50mm Coils |
Disposable vapes, Zyn-style pouches, boxed vape products, accessories, and compact high-ticket items |
Up to 105 total units across 15 aisles |
| 15 Aisles |
Multiple SKU setup for operators needing broader product selection and higher sales flexibility |
Approx. 50% more SKU coverage than smaller slim wall models |
| Wider Tray Layout |
Boxed products, wider packaging, premium compact merchandise, and high-value retail SKUs |
Final capacity depends on product size and packaging thickness |
PAYMENT CONFIGURATION
Nayax VPOS Touch Payment for Smart Wall-Mounted Vending
The Mega Wall 2.0 supports Nayax VPOS Touch for modern cashless vending transactions. Operators can provide
card payment, tap-to-pay, mobile wallet compatibility, and payment reporting depending on local merchant
approval, network coverage, payment provider setup, and product category compliance.
Nayax VPOS Touch Payment Model
Supports cashless vending transactions, tap-to-pay, card payment, mobile wallet compatibility, and vending payment reporting.
WiFi / 2G / 4G Connectivity
Multiple network options support payment communication, machine telemetry, transaction records, and remote management.
Cloud-Based Transaction Records
Operators can review product movement, sales activity, payment data, and performance history through compatible vending software.
Project-Based Payment Setup
Payment hardware and network configuration can be selected according to market availability, merchant approval, and deployment requirements.
APPLICATION SCENARIOS
Designed for Vape Shops, Nightlife Venues, Bars, and High-Ticket Retail
The Mega Wall 2.0 is suitable for businesses that want a high-capacity vending solution without the floor
space requirements of a freestanding machine. Its wall-mounted format, 32-inch touchscreen, electronic lock,
LED lighting, and broader SKU capacity make it ideal for busy commercial spaces.
Vape Shops & Tobacconists
Can be used as an automated retail extension for vape products, pouch products, accessories, and compact boxed goods.
Bars, Clubs & Nightlife Venues
LED product lighting, cashless payment, and optional ID scanner support make it suitable for nightlife vending environments.
High-Ticket Compact Products
Wider trays and secure electronic access make the machine suitable for selected premium compact retail products.
Hospitality & Entertainment Spaces
Suitable for hotels, lounges, entertainment centres, event spaces, and high-traffic indoor commercial locations.
AGE VERIFICATION & COMPLIANCE
Optional ID Scanner Add-On for Age-Restricted Product Vending
The Mega Wall 2.0 includes a modular plate design that can support an optional ID scanner add-on. This
allows operators to add an age-verification workflow for vape, pouch, or other age-restricted products
where local regulations, licensing conditions, or venue policies require additional verification.
Compliance requirements vary by country, state, territory, city, product category, venue type, and sales
model. Operators are responsible for confirming that the selected machine configuration, product category,
payment setup, age-verification workflow, and installation location comply with all applicable regulations
before deployment.
AUSTRALIA DEPLOYMENT SUPPORT
Wall-Mounted Vape Vending Support for Australian Commercial Locations
SUKE Vape Vending can support Australian operators with machine selection, product fit checks, wall-mounting
planning, payment configuration, voltage planning, shipping preparation, remote management setup, and
after-sales technical assistance. The Mega Wall 2.0 is suitable for businesses that want a high-capacity
wall-mounted vape vending solution in Sydney, Melbourne, Brisbane, and other commercial locations across
Australia.
Before order placement, operators should confirm voltage configuration, plug standard, wall structure,
installation height, payment terminal approval, network coverage, product dimensions, compliance requirements,
and whether optional ID scanner hardware is required.
Sydney Warehouse Support
5 Ladbroke St, Milperra NSW 2214, Australia
Melbourne Warehouse Support
11 Webber Pde, Keilor East, VIC, Australia
Brisbane Warehouse Support
B1, 142-172 Sherbrooke Road, Willawong QLD 4110, Australia
WHY CHOOSE MEGA WALL 2.0?
A High-Capacity Wall-Mounted Vape Vending Machine for Professional Automated Retail
The Mega Wall 2.0 is designed for operators who want the product capacity and visibility of a larger vending
system while keeping a compact wall-mounted footprint. Its 15 aisles, 32-inch touchscreen, LED product
lighting, electronic lock, Nayax VPOS Touch payment, wider trays, and optional ID scanner support make it
a strong choice for vape vending, nightlife vending, and high-ticket compact retail automation.
With SUKE Vape Vending, operators can receive support for product layout planning, coil selection, payment
integration, optional age verification, branding options, remote monitoring, spare parts, shipping planning,
and after-sales technical assistance.
FREQUENTLY ASKED QUESTIONS
Mega Wall 2.0 Installation & Operation FAQ
How many products can the Mega Wall 2.0 hold?
The Mega Wall 2.0 supports up to 105 units on 50mm coils depending on product dimensions, packaging
thickness, and final vending configuration.
Does Mega Wall 2.0 require floor space?
No. The Mega Wall 2.0 is designed as a wall-mounted vending machine, making it suitable for locations
where operators want to save floor space while adding automated retail capacity.
What makes it different from smaller wall-mounted machines?
The Mega Wall 2.0 provides 15 aisles, up to 105-unit capacity on 50mm coils, wider trays for boxed
products, LED product lighting, and electronic access control, offering more SKU flexibility than smaller
wall-mounted models.
Does it support Nayax VPOS Touch?
Yes. Mega Wall 2.0 supports Nayax VPOS Touch for cashless vending transactions, tap-to-pay, card payment,
mobile wallet compatibility, and payment reporting where supported.
Can the machine support age verification?
Yes. The machine includes a modular plate design and can support an optional ID scanner add-on. Operators
should confirm local laws and licensing requirements before selling age-restricted products.
Is Mega Wall 2.0 suitable for Australian deployment?
Yes. Mega Wall 2.0 can be prepared for Australian commercial deployment. Voltage, plug standard,
wall-mounting conditions, payment compatibility, network coverage, product compliance, and optional
ID scanner requirements should be confirmed before order placement.
