SUKE VAPE VENDING

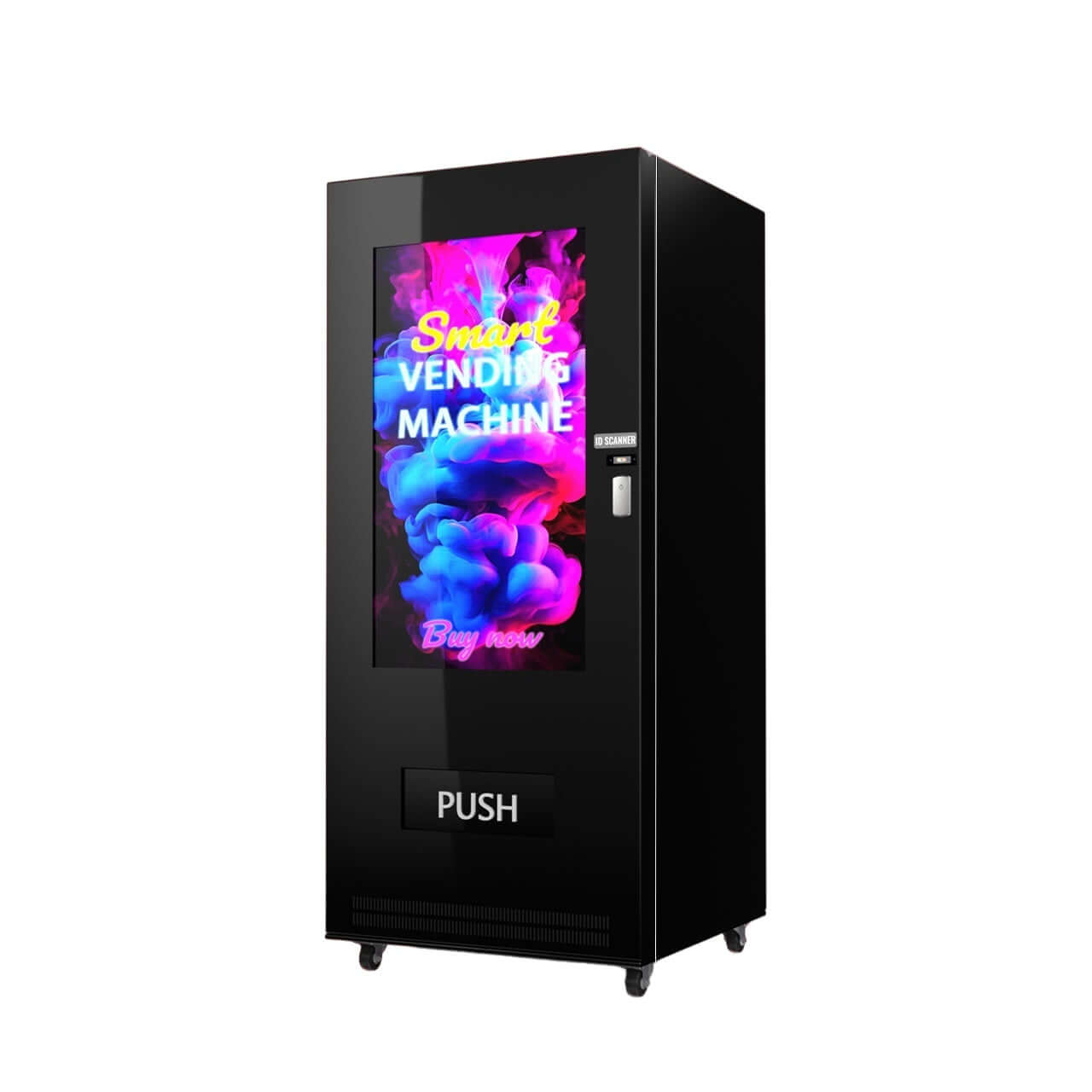

Mega Box High-Capacity Refrigerated Vape Vending Machine with 47" Touchscreen

COMMERCIAL SPECIFICATIONS
With ID Scanner Instant age verification
Cloud IoT Portal Live stock & sales tracking
1 Year Warranty Full commercial support
1.8mm Steel Body Anti-theft double locking
HD Touch Display Interactive multimedia UX
Multi-Coil Pitch 22mm-55mm goods fit
PAYMENT OPTIONS
Card Reader
Card
Cash Acceptor
Cash
QR Pay
QR Code
Coin Acceptor
Coin
$4,599.00
options
HIGH-CAPACITY FREE-STANDING VENDING SOLUTIONS

Mega Box: High-Capacity Free-Standing Vending Machine with Cooling

The Mega Box by SUKE Vape Vending is a high-capacity free-standing smart vending machine designed for vape retail, temperature-sensitive products, snacks, drinks, accessories, and other packaged goods. With 56 aisles, up to 672 total item capacity, built-in cooling functionality, a 47-inch touchscreen, cashless payment compatibility, optional age verification, and cloud-based remote management, the Mega Box is built for modern automated retail environments.

56 Aisles Up to 672 Items Built-In Cooling 47" Touchscreen Nayax / Apple Pay Compatible
HIGH-CAPACITY AUTOMATED RETAILING

Built for Large-Volume Vape Retail and Temperature-Sensitive Product Sales

For operators who need more capacity than compact wall-mounted machines, the Mega Box provides a powerful free-standing vending solution with a large product layout, strong cabinet structure, commercial cooling support, and a highly visible touchscreen interface.

This floor-standing vending machine is designed for vape shops, convenience retail, hospitality venues, entertainment locations, lounges, nightclubs, shopping areas, and other high-footfall commercial environments. Its refrigeration system helps keep suitable products cool and protected, while the large 47-inch screen creates a premium self-service customer experience.

Massive 56-Aisle Capacity

Supports up to 56 aisles and up to 672 total items depending on coil configuration, product size, and final vending layout.

Built-In Cooling System

Integrated refrigeration functionality helps support temperature-sensitive products that require a cooler storage environment inside the vending cabinet.

47" High-Brightness Touchscreen

Large commercial touchscreen display supports product browsing, brand customization, advertising media, promotion content, and modern self-service purchasing.

1.8mm Steel Cabinet

Heavy-duty metal casing with double-locking security design, built for commercial environments where durability and asset protection are important.

Cashless Payment Compatible

Compatible with Nayax card reader configuration and selected cashless payment methods, including mobile wallet payment options such as Apple Pay where supported.

Remote Management Ready

Supports web and mobile remote management for sales data, stock monitoring, pricing updates, machine status, alerts, and operational reporting.

TECHNICAL SPECIFICATIONS

Mega Box Machine Configuration

The Mega Box is designed for high-capacity vending deployment. Coil layout, payment hardware, cooling configuration, network connection, age verification, and remote management options can be adjusted according to product category, operating location, and project requirements.

Specification Details
Machine Type High-capacity free-standing smart vending machine with cooling
Product Aisles 56 aisles
Maximum Capacity Up to 672 total items depending on coil configuration and product size
Cooling Function Built-in refrigeration system for suitable temperature-sensitive products

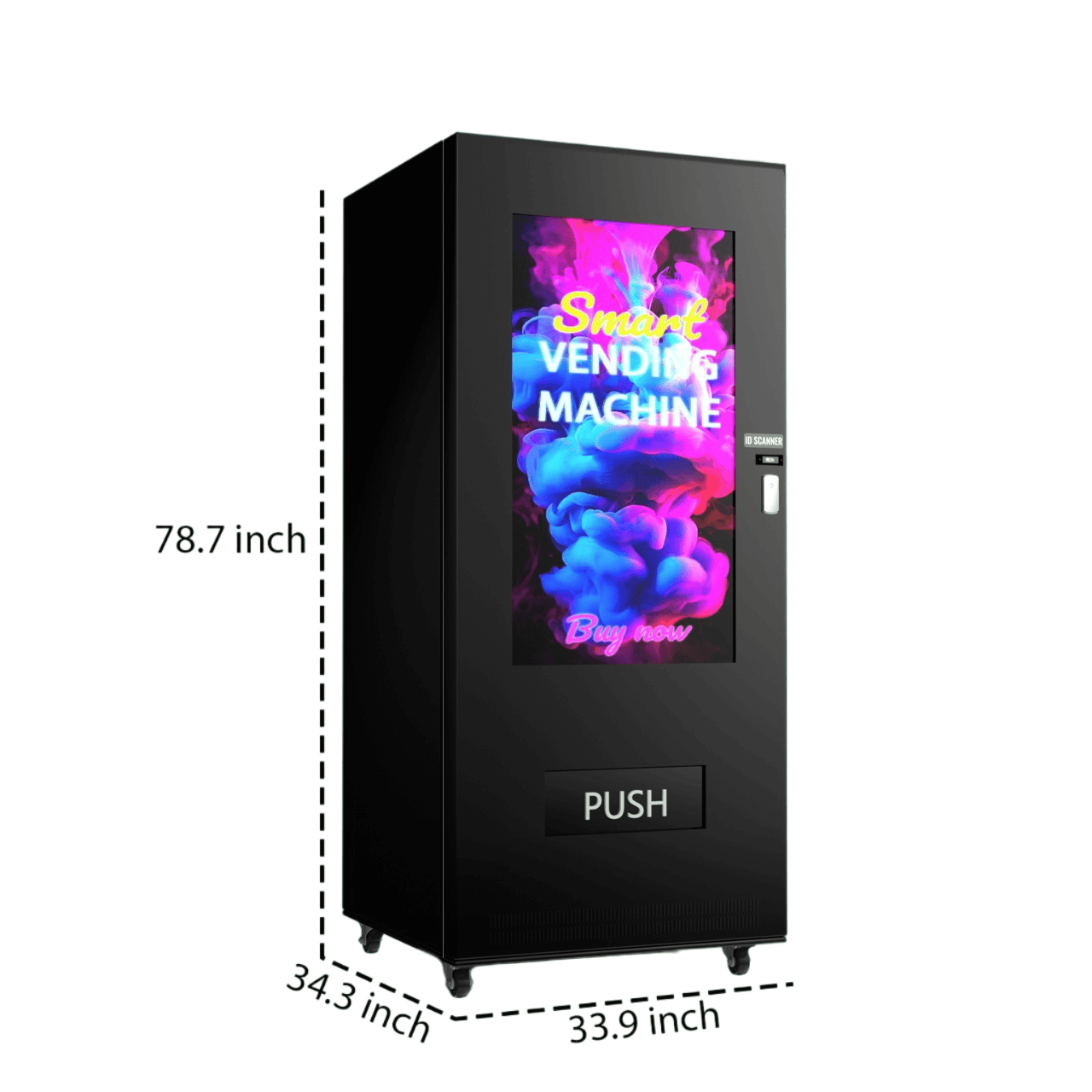

Dimensions Approx. 78.7" H × 34.3" D × 33.9" W
Cabinet Material Heavy-duty 1.8mm steel casing
Security Design Double-locking security system for commercial deployment
Touchscreen Display 47-inch high-resolution adjustable-brightness touchscreen
Operating System Android operating board
Connectivity Wi-Fi with high-gain antenna; cellular connectivity available through compatible card reader or IoT module
Payment System Nayax card reader configuration available; supports selected cashless and mobile payment methods
Mobile Wallet Support Apple Pay and other compatible payment methods available depending on payment provider support
Age Verification Optional age verification module available for regulated product vending applications
Remote Management Web and mobile management platform for inventory, sales, pricing, alerts, and machine status
Warranty 1-year commercial support available according to order terms
COIL & CAPACITY CONFIGURATION

High-Capacity Coil Layout for Multiple Product Sizes

The Mega Box can be configured with different coil sizes to match product packaging dimensions, weight, and dispensing requirements. Capacity may vary depending on product size, coil pitch, product depth, and final tray layout.

Machine Model Coil Type Capacity Per Aisle Total Capacity Typical Product Fit
Mega Box 35mm Coils Approx. 12 units per aisle Up to 672 total units Snacks, drinks, slim packaged goods, compact boxed products, and customizable items
Mega Box 45mm Coils Approx. 10 units per aisle Up to 560 total units Standard packaged goods, medium-sized boxes, accessories, and selected retail products
Mega Box 55mm Coils Approx. 8 units per aisle Up to 448 total units Larger packaged products, wider boxes, bottled products, and selected temperature-sensitive goods
COOLING FUNCTIONALITY

Refrigerated Vending Support for Suitable Temperature-Sensitive Products

The Mega Box includes built-in cooling functionality for operators who need to store suitable products in a cooler internal environment. This makes it useful for selected beverages, packaged items, and other products that benefit from controlled cabinet temperature.

Cooling performance depends on ambient temperature, machine placement, door opening frequency, product load, ventilation clearance, and selected refrigeration configuration. Operators should confirm product storage requirements before deployment.

Built-In Refrigeration System Helps maintain a cooler cabinet environment for suitable temperature-sensitive products.
Large Product Storage Area 56-aisle layout allows operators to carry more SKUs or higher stock volume in one vending machine.
Suitable for Mixed Retail Categories Can be configured for vape-related products, drinks, snacks, accessories, and other compatible packaged goods.
PAYMENT CONFIGURATION

Cashless Payment and Mobile Wallet Support

The Mega Box can be configured with cashless payment hardware for modern vending operations. Payment compatibility may depend on local payment provider availability, merchant approval, banking setup, product category, and regional restrictions.

Nayax Card Reader Configuration Suitable for card payment, tap-to-pay, transaction reporting, and vending payment management.
Apple Pay & Mobile Wallet Support Compatible payment terminals may support Apple Pay and other mobile wallet options where available.
Remote Sales Monitoring Operators can review transaction data and product performance through the web or mobile management platform.
Project-Based Payment Setup Payment modules can be selected according to market requirements, product category, and payment provider approval.
APPLICATION SCENARIOS

Ideal for High-Traffic Commercial Locations and Large-Scale Retail Deployment

The Mega Box is suitable for operators who need larger product capacity, cooling support, and a premium touchscreen vending experience. It is designed for businesses that want to reduce staff workload while increasing self-service retail availability.

Vape Shops & Specialty Retail Can be used as a high-capacity automated retail point for suitable vape-related products and accessories.
Hospitality & Entertainment Venues Suitable for bars, lounges, clubs, hotels, sports venues, and entertainment locations with strong foot traffic.
Convenience Retail & Mixed Product Vending Supports snacks, drinks, packaged goods, accessories, and selected temperature-sensitive products.
Shopping Centres & Commercial Spaces Large touchscreen and high stock capacity make it suitable for prominent self-service retail locations.
WHY CHOOSE MEGA BOX?

A High-Capacity Refrigerated Vending Machine for Modern Automated Retail

The Mega Box is ideal for operators who need more capacity, stronger visibility, and cooling functionality in one free-standing vending machine. Its 56-aisle design helps reduce restocking frequency, while the 47-inch touchscreen creates a premium shopping experience for customers.

With SUKE Vape Vending, operators can receive support for machine configuration, coil layout planning, payment integration, age-verification setup, remote management, custom branding, shipping coordination, training, spare parts, and after-sales technical assistance.

FREQUENTLY ASKED QUESTIONS

Mega Box Installation & Operation FAQ

How many products can the Mega Box hold?

The Mega Box supports up to 56 aisles and can hold up to 672 total items with 35mm coils. Actual capacity depends on product dimensions, coil type, package depth, and final tray configuration.

Does the Mega Box include a cooling system?

Yes. The Mega Box includes built-in refrigeration functionality for suitable temperature-sensitive products. Cooling performance may vary depending on ambient temperature, placement, ventilation, and product load.

Does the Mega Box support cashless payment?

Yes. The machine can be configured with Nayax card reader and selected cashless payment options. Apple Pay and other mobile wallet methods may be supported depending on the payment terminal and provider.

Can the Mega Box support age verification?

Yes. An optional age verification module can be configured for regulated product vending applications. Operators must confirm whether the selected verification method meets local legal and licensing requirements.

Can I manage the Mega Box remotely?

Yes. The Mega Box can support web and mobile remote management for inventory, pricing, sales records, machine status, alerts, and operational reporting depending on the selected software configuration.

What products can be sold in the Mega Box?

The Mega Box can be configured for suitable vape-related products, drinks, snacks, accessories, packaged retail goods, and selected temperature-sensitive products. Product compatibility should be confirmed based on size, weight, packaging, and dispensing requirements.

SUKE SMART RETAIL ✦ 24/7 AUTONOMOUS OPERATION ZERO STAFF OVERHEAD ✦ INSTANT OPTICAL 18+ ID VERIFICATION AUSTRALIAN EFTPOS & NAYAX CASHLESS ✦ REAL-TIME CLOUD IOT INVENTORY VANDAL-PROOF INDUSTRIAL STEEL CASING ✦ AS/NZS RCM ELECTRICAL CERTIFIED
AUSTRALIAN COMPLIANCE & COMMERCIAL SUPPORT

Frequently Asked Questions for Australian Operators

Key answers for venue owners, retailers, hospitality operators, and commercial partners across New South Wales, Victoria, Queensland, Western Australia, South Australia, Tasmania, the ACT, and the Northern Territory.

Does the optical ID scanner support Australian 18+ age verification and privacy requirements?

Yes. The optical ID scanner is designed for Australian 18+ access-control scenarios. It can be configured to read common Australian age-verification documents, including state driver licences, Australian passports, and supported proof-of-age cards.

The age check is processed locally at the hardware level, helping operators verify eligibility without storing customer photos, names, addresses, or biometric identity records on the machine. This approach is designed to support privacy-conscious deployments in regulated commercial environments.

How does cashless payment integrate with Australian EFTPOS and major card networks?

Machines can be configured with commercial payment terminals such as Nayax VPOS Touch or Nayax Onyx, depending on your selected model and deployment requirements.

  • Supports Australian EFTPOS, Visa, Mastercard, and selected card networks.
  • Accepts contactless mobile wallets, including Apple Pay and Google Pay where supported.
  • Settlement can be arranged in AUD through compatible payment service providers.
  • Suitable for pubs, clubs, tobacconists, retail venues, hotels, entertainment locations, and unattended retail sites.
What cellular network and IoT options are available across Australia?

Each machine can be supplied with industrial IoT connectivity options, including wired Ethernet, Wi-Fi, and 4G/5G-ready modules depending on configuration.

This enables remote stock monitoring, sales visibility, payment connectivity, machine status alerts, and cloud-based telemetry for operators across Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, Hobart, Darwin, and selected regional commercial venues.

Are the machines suitable for Australian 240V commercial locations?

Yes. For Australian projects, machines can be supplied with 240V 50Hz power configuration and Australian standard plug options. Internal components such as power supplies, control boards, touchscreen systems, and payment modules can be specified based on commercial deployment requirements.

Final electrical configuration, compliance documentation, and installation requirements may vary depending on the model, order specification, and local site conditions.

What are the delivery options and customs processes for Australian orders?

We can assist with commercial freight options to major Australian locations, including Sydney, Melbourne, Brisbane, Perth, Adelaide, Gold Coast, Canberra, Hobart, and Darwin.

Depending on your order quantity, budget, and timeline, shipping can be arranged by sea freight or air freight. Delivery timing depends on production, machine configuration, customs clearance, port handling, local transport, and final site access.

For bulk or project-based deployments, we can help coordinate freight planning, export documentation, customs information, and door-to-door delivery options where available.

How are warranty, technical support, and spare parts handled for Australian operators?

Eligible machines are supported by commercial warranty coverage based on the agreed order terms. Our support team can assist with remote setup, troubleshooting, stock configuration, payment integration guidance, and operational training.

  • Common spare parts include spiral coils, drop sensors, 24V motors, control boards, payment harnesses, locks, power modules, and display components.
  • Replacement parts can be arranged according to machine model, diagnosed issue, and order configuration.
  • Remote support can help operators reduce downtime and maintain reliable unattended retail operation.

Match Your Flavors

FACTORY-DIRECT ENGINEERING & ODM SOLUTIONS

The Turnkey OEM Customization Process

From custom UI architecture and Australian ID compliance to precision steel fabrication. Engineered for hospitality venues, franchise operators, and retail networks across Australia.

01
Initial Scoping

Consultation & Technical Design

We define your project specifications: cabinet dimensions, coil spring pitch (22mm–55mm), and exterior powder-coated finish. Our engineering team delivers accurate 3D CAD blueprints and interactive UI mockups within 48 hours.

Deliverable: Full 3D Digital Renderings
02
Rapid Engineering

Prototype Development & Branding

We fabricate a functional working prototype with your bespoke vinyl graphics, custom launcher screens, and client-specified payment enclosures. Nayax VPOS Touch or Onyx cashless terminals are pre-mounted with test configurations.

Focus: Tactile Testing & Firmware Setup
03
Australian Regulatory Standards

Australian Compliance & Edge Testing

Every machine is rigorously validated for AS/NZS 3112 RCM electrical safety (240V 50Hz). We calibrate edge optical scanner firmware against Australian state driver licences (NSW, VIC, QLD, WA, SA), strictly satisfying the Australian Privacy Principles (APPs).

Standard: 100% RCM & APPs Edge Privacy
04
Mass Production & Logistics

Precision Manufacturing & DDP AU Freight

Automated laser cutting and CNC metal bending build cold-rolled steel chassis in batch runs. We manage fully insured DDP sea freight directly to Sydney (Port Botany), Melbourne, and Brisbane ports with customs clearance and 10% GST pre-cleared.

Logistics: Australian Customs & Duty Cleared
05
Deployment & Telemetry

AEST Support, Telemetry & Onboarding

Your fleet is pre-connected with Telstra and Optus Cat-M1 4G IoT eSIMs. We provide end-to-end cloud management training, daily EFTPOS bank payout setup, and dedicated technical support operating on Australian Eastern Standard Time (AEST).

Support: 1-Year Warranty & Express Spare Parts
