SUKE VAPE VENDING

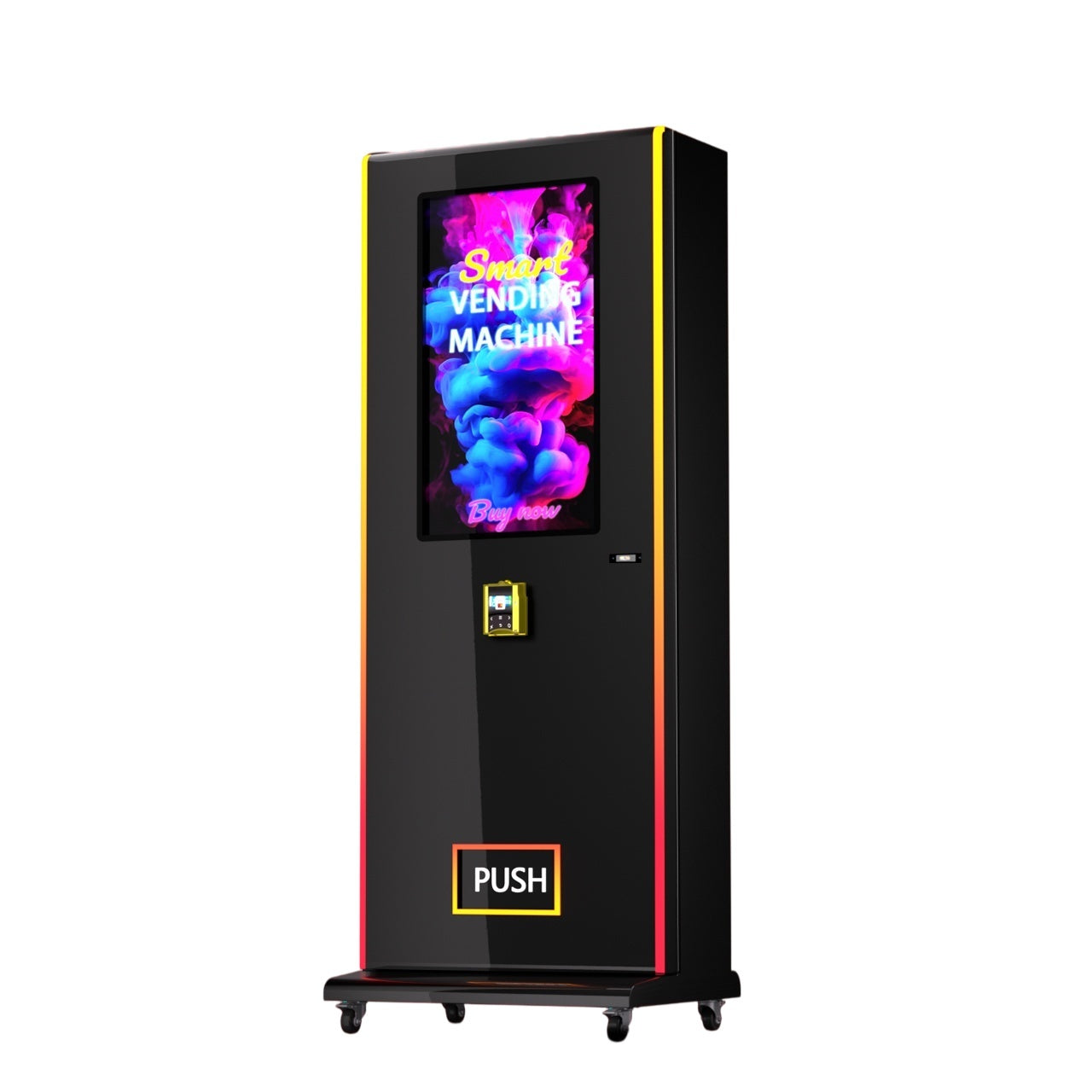

Max Wall Vape Vending Machine with 32" Touchscreen

COMMERCIAL SPECIFICATIONS
With ID Scanner Instant age verification
Cloud IoT Portal Live stock & sales tracking
1 Year Warranty Full commercial support
1.8mm Steel Body Anti-theft double locking
HD Touch Display Interactive multimedia UX
Multi-Coil Pitch 22mm-55mm goods fit
PAYMENT OPTIONS
Card Reader
Card
Cash Acceptor
Cash
QR Pay
QR Code
Coin Acceptor
Coin
$6,999.00
options
SMART RETAIL & AGE VERIFICATION SOLUTIONS

Max Wall: High-Capacity, Wall-Mounted, 32" Touch Screen ID Scanner Vending Machine

Commercial-grade automated retail solution engineered for high-traffic vape shops, bars, nightclubs, hospitality venues, entertainment locations, and compact retail environments. The Max Wall combines a high-capacity vertical cabinet, 32-inch HD touchscreen, configurable tray system, cashless payment compatibility, optional age verification, and cloud-based remote management for unattended retail operation.

32" HD Touchscreen Up to 210 Items ID Scanner Ready Cloud Remote Management Cashless Payment Compatible
HIGH PERFORMANCE AUTOMATED RETAILING

Engineered for High-Capacity Vape Vending in a Slim Wall-Mounted Footprint

Traditional freestanding vending machines often require significant floor space, which can reduce customer flow and limit placement flexibility. The Max Wall by SUKE Vape Vending is designed to transform vertical wall space into a powerful automated retail point while maintaining strong product capacity and modern visual appeal.

Built for vape shops, bars, clubs, hospitality venues, convenience retail, entertainment spaces, and other high-traffic commercial locations, the Max Wall combines durable cabinet construction, flexible tray configuration, cashless payment compatibility, remote machine management, and optional age verification in one smart vending system.

High-Capacity Layout

Supports up to 210 items depending on product size and coil configuration, making it suitable for disposable vapes, nicotine pouches, accessories, and other compact packaged products.

7 Adjustable Trays

Equipped with 7 adjustable trays and 3 lanes per tray, allowing operators to configure product slots according to package width, depth, and dispensing requirements.

32" HD LCD Touchscreen

Large commercial touchscreen display supports interactive product selection, branded interface layouts, product media, promotion content, and digital advertising.

1.8mm Steel Body

Heavy-duty cabinet structure with secure locking design, built for commercial environments where durability, safety, and asset protection are essential.

Cloud-Based Management

Compatible with remote machine monitoring, allowing operators to review inventory, transactions, pricing, product status, and machine performance from a cloud management system.

Payment & Age Verification Ready

Supports cashless payment configuration and optional ID scanner / age verification module for regulated 21+ product vending applications.

TECHNICAL SPECIFICATIONS

Max Wall Machine Configuration

The Max Wall is designed for flexible vending configurations. Tray layout, coil pitch, payment module, connectivity, and age verification options can be adjusted according to product type, location requirements, and operator preferences.

Specification Details
Machine Type High-capacity wall-mounted smart vending machine

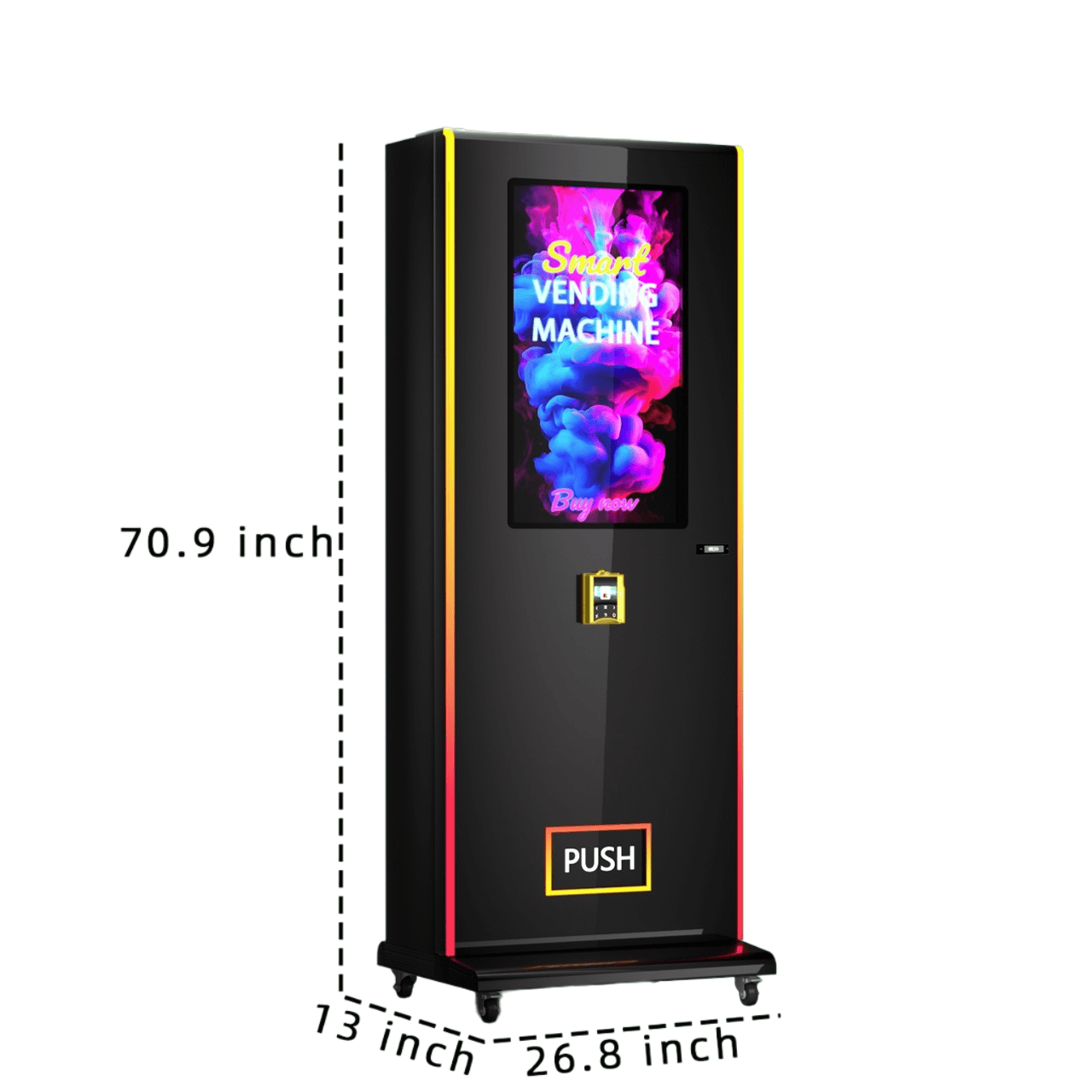

Dimensions 13" W × 26.8" D × 70.9" H
Weight 100KG
Screen 32" Full HD LCD Touchscreen
Capacity Up to 210 items, depending on tray and coil configuration
Tray System 7 adjustable trays with 3 lanes per tray
Cabinet Material 1.8mm commercial-grade steel body
Payment System Nayax card reader / PAX card reader / cashless payment options available
Coin / Cash Options Coin acceptor and cash acceptor configurations available upon request
Age Verification Optional ID scanner and age verification module
Connectivity Wi-Fi, Ethernet, optional cellular connectivity
Power Supply 110–240V AC
Software SUKE cloud-based vending management system
Warranty 1-year commercial support available according to order terms
PAYMENT CONFIGURATION

Flexible Payment Options for Commercial Deployment

The Max Wall can be configured with different payment modules based on market requirements and operator preference. Cashless payment systems, coin acceptors, and cash acceptors can be selected according to project needs.

Modular Base + Nayax Card Reader + Cash Acceptor + Multi-Coil System Suitable for locations requiring both cashless and cash payment support.
Modular Base + Nayax Card Reader + Coin Acceptor + Multi-Coil System Ideal for venues where coin payment remains commonly used.
Modular Base + Nayax Card Reader + Multi-Coil System Recommended for modern cashless vending environments.
Modular Base + PAX Card Reader + Multi-Coil System Alternative cashless payment configuration for selected market requirements.
WHY CHOOSE MAX WALL?

Built for High-Traffic Vape Retail and 21+ Product Automation

Whether you operate a busy nightclub, bar, vape shop, convenience store, entertainment venue, or hospitality location, the Max Wall gives you a sleek, low-footprint vending solution without sacrificing product capacity or operational control.

With SUKE Vape Vending, operators can receive support for hardware configuration, payment integration, custom branding, vending layout planning, remote management, and after-sales technical assistance.

FREQUENTLY ASKED QUESTIONS

Compliance & Installation FAQ

Can the Max Wall be installed in bars, clubs, or vape shops?

Yes. The Max Wall is designed for commercial venues such as vape shops, bars, clubs, nightclubs, hospitality locations, entertainment venues, and other high-traffic retail environments.

Does the Max Wall support age verification?

Yes. The machine can be configured with an optional ID scanner or age verification module depending on local compliance requirements and operator needs.

How many products can the Max Wall hold?

The machine supports up to 210 items depending on product dimensions, tray layout, coil pitch, and final vending configuration.

Can I manage the machine remotely?

Yes. The Max Wall supports cloud-based remote management for monitoring inventory, transactions, machine status, media content, and operating data.

What payment systems are available?

The machine can support Nayax card reader, PAX card reader, cashless payment, coin acceptor, and cash acceptor configurations depending on the selected order setup.

SUKE SMART RETAIL ✦ 24/7 AUTONOMOUS OPERATION ZERO STAFF OVERHEAD ✦ INSTANT OPTICAL 18+ ID VERIFICATION AUSTRALIAN EFTPOS & NAYAX CASHLESS ✦ REAL-TIME CLOUD IOT INVENTORY VANDAL-PROOF INDUSTRIAL STEEL CASING ✦ AS/NZS RCM ELECTRICAL CERTIFIED
AUSTRALIAN COMPLIANCE & COMMERCIAL SUPPORT

Frequently Asked Questions for Australian Operators

Key answers for venue owners, retailers, hospitality operators, and commercial partners across New South Wales, Victoria, Queensland, Western Australia, South Australia, Tasmania, the ACT, and the Northern Territory.

Does the optical ID scanner support Australian 18+ age verification and privacy requirements?

Yes. The optical ID scanner is designed for Australian 18+ access-control scenarios. It can be configured to read common Australian age-verification documents, including state driver licences, Australian passports, and supported proof-of-age cards.

The age check is processed locally at the hardware level, helping operators verify eligibility without storing customer photos, names, addresses, or biometric identity records on the machine. This approach is designed to support privacy-conscious deployments in regulated commercial environments.

How does cashless payment integrate with Australian EFTPOS and major card networks?

Machines can be configured with commercial payment terminals such as Nayax VPOS Touch or Nayax Onyx, depending on your selected model and deployment requirements.

  • Supports Australian EFTPOS, Visa, Mastercard, and selected card networks.
  • Accepts contactless mobile wallets, including Apple Pay and Google Pay where supported.
  • Settlement can be arranged in AUD through compatible payment service providers.
  • Suitable for pubs, clubs, tobacconists, retail venues, hotels, entertainment locations, and unattended retail sites.
What cellular network and IoT options are available across Australia?

Each machine can be supplied with industrial IoT connectivity options, including wired Ethernet, Wi-Fi, and 4G/5G-ready modules depending on configuration.

This enables remote stock monitoring, sales visibility, payment connectivity, machine status alerts, and cloud-based telemetry for operators across Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, Hobart, Darwin, and selected regional commercial venues.

Are the machines suitable for Australian 240V commercial locations?

Yes. For Australian projects, machines can be supplied with 240V 50Hz power configuration and Australian standard plug options. Internal components such as power supplies, control boards, touchscreen systems, and payment modules can be specified based on commercial deployment requirements.

Final electrical configuration, compliance documentation, and installation requirements may vary depending on the model, order specification, and local site conditions.

What are the delivery options and customs processes for Australian orders?

We can assist with commercial freight options to major Australian locations, including Sydney, Melbourne, Brisbane, Perth, Adelaide, Gold Coast, Canberra, Hobart, and Darwin.

Depending on your order quantity, budget, and timeline, shipping can be arranged by sea freight or air freight. Delivery timing depends on production, machine configuration, customs clearance, port handling, local transport, and final site access.

For bulk or project-based deployments, we can help coordinate freight planning, export documentation, customs information, and door-to-door delivery options where available.

How are warranty, technical support, and spare parts handled for Australian operators?

Eligible machines are supported by commercial warranty coverage based on the agreed order terms. Our support team can assist with remote setup, troubleshooting, stock configuration, payment integration guidance, and operational training.

  • Common spare parts include spiral coils, drop sensors, 24V motors, control boards, payment harnesses, locks, power modules, and display components.
  • Replacement parts can be arranged according to machine model, diagnosed issue, and order configuration.
  • Remote support can help operators reduce downtime and maintain reliable unattended retail operation.

Match Your Flavors

FACTORY-DIRECT ENGINEERING & ODM SOLUTIONS

The Turnkey OEM Customization Process

From custom UI architecture and Australian ID compliance to precision steel fabrication. Engineered for hospitality venues, franchise operators, and retail networks across Australia.

01
Initial Scoping

Consultation & Technical Design

We define your project specifications: cabinet dimensions, coil spring pitch (22mm–55mm), and exterior powder-coated finish. Our engineering team delivers accurate 3D CAD blueprints and interactive UI mockups within 48 hours.

Deliverable: Full 3D Digital Renderings
02
Rapid Engineering

Prototype Development & Branding

We fabricate a functional working prototype with your bespoke vinyl graphics, custom launcher screens, and client-specified payment enclosures. Nayax VPOS Touch or Onyx cashless terminals are pre-mounted with test configurations.

Focus: Tactile Testing & Firmware Setup
03
Australian Regulatory Standards

Australian Compliance & Edge Testing

Every machine is rigorously validated for AS/NZS 3112 RCM electrical safety (240V 50Hz). We calibrate edge optical scanner firmware against Australian state driver licences (NSW, VIC, QLD, WA, SA), strictly satisfying the Australian Privacy Principles (APPs).

Standard: 100% RCM & APPs Edge Privacy
04
Mass Production & Logistics

Precision Manufacturing & DDP AU Freight

Automated laser cutting and CNC metal bending build cold-rolled steel chassis in batch runs. We manage fully insured DDP sea freight directly to Sydney (Port Botany), Melbourne, and Brisbane ports with customs clearance and 10% GST pre-cleared.

Logistics: Australian Customs & Duty Cleared
05
Deployment & Telemetry

AEST Support, Telemetry & Onboarding

Your fleet is pre-connected with Telstra and Optus Cat-M1 4G IoT eSIMs. We provide end-to-end cloud management training, daily EFTPOS bank payout setup, and dedicated technical support operating on Australian Eastern Standard Time (AEST).

Support: 1-Year Warranty & Express Spare Parts
